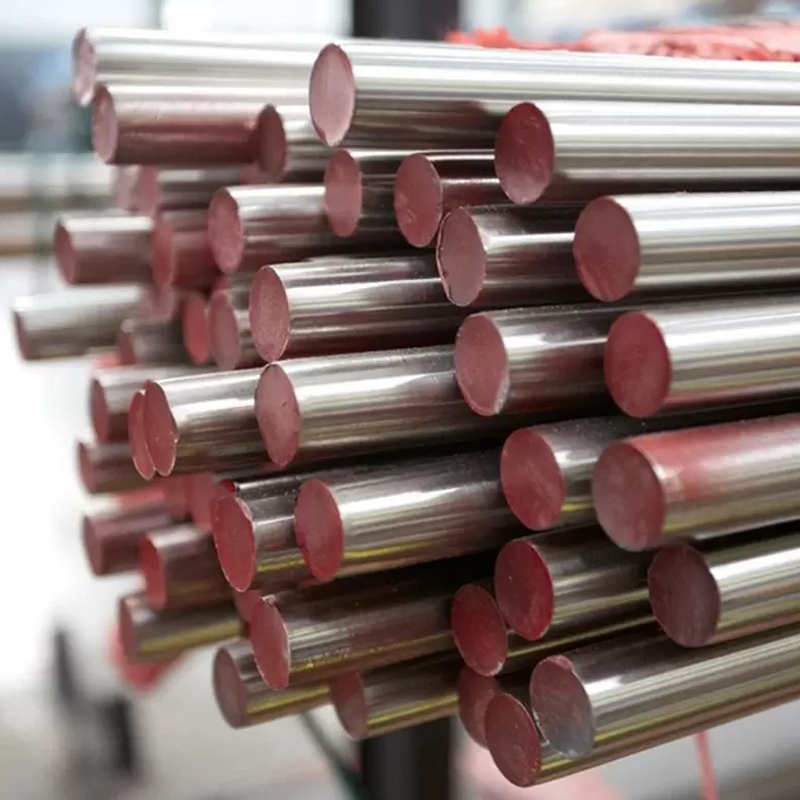

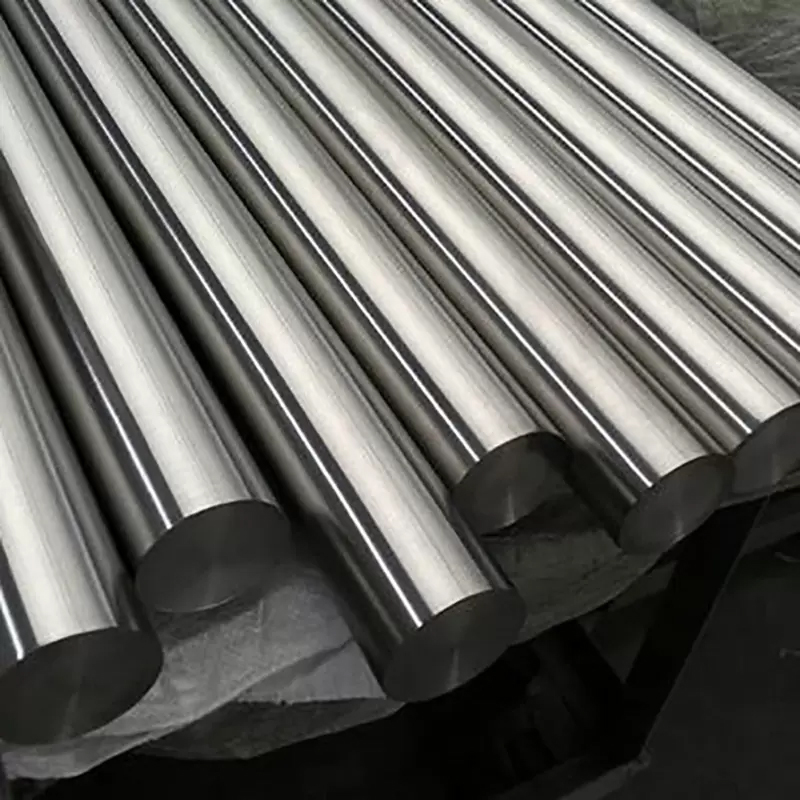

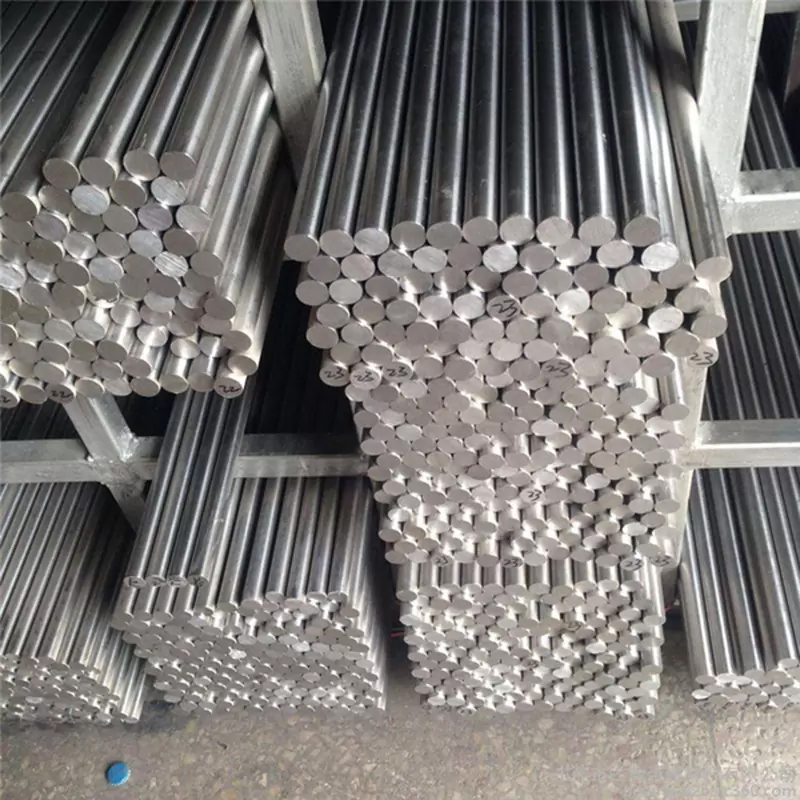

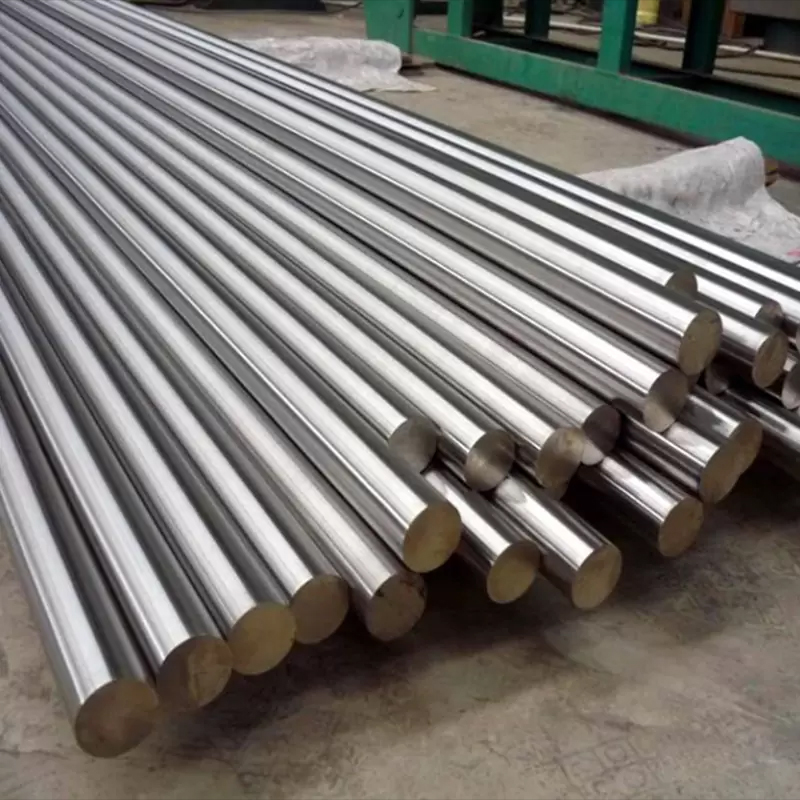

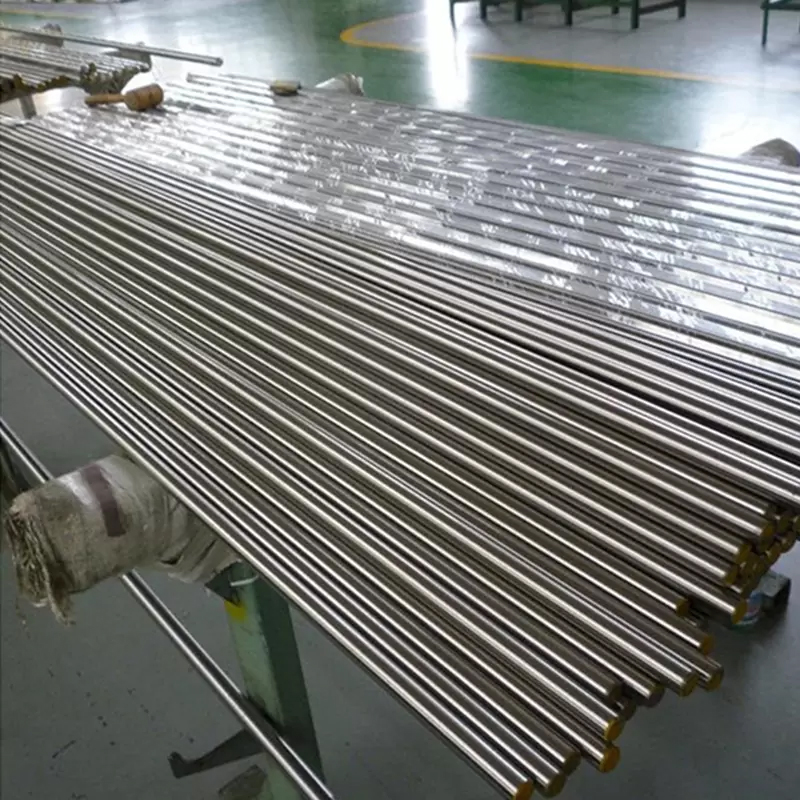

Nickel Alloy 200 Bar

Nickel Alloy 200 bar is made of a pure nickel alloy having a chemical composition containing a minimum of 99% nickel. This alloy is the purest nickel alloy and is often chosen for use inly corrosive environments.

GET A QUOTE

TEL: +86 17616193602

WhatsApp: +86 17616193602

E-mail: enquiry@shougang-metal.com

PRODUCT DESCRIPTION

Nickel Alloy 200 Bar Description

Nickel 200 is a high-purity metal consisting primarily of nickel with a purity of 99.0%. Due to its excellent physical and chemical properties, it is widely used in various fields. Nickel alloy 200 bar can withstand corrosion from various acid and alkali liquids, and maintains stable performance at high temperatures. In addition, nickel 200 bar is an important electrical and thermal conductive material having good thermal and electrical conductivity. This metal can be processed and heated through various processes to make products of different shapes and specifications. Lastly, Nickel 200 is a pure commercial nickel with extremely low carbon content that has been approved for use in high temperature environments up to 1230°C.

Product Parameters

Product Name		Nickel Alloy 200 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling

Chemical Composition

Gread	C	Si	S	Mn	Fe	Ni	Cu
Alloy 200	0.15 max	0.35 max	0.01 max	0.35 max	0.4 max	99.0 min	0.25 max

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
55	15	35

Physical Performance

	Units	Temperature in°C
Density	8.89 g/cm³	Room
Specific Heat	0.108 Kcal/kg.C	Room
Melting Range	1435-1446°C	-
Modulus of Elasticity	205 KN/mm²	Room
Electrical Resistivity	9.6 µΩ.cm	20°
Coefficient of Expansion	13.3 µm/m °C	20 - 100°
Thermal Conductivity	70.3 w/m-° K	20°

Scope of Application

Used in electrical industry, chemical industry, heat exchanger, synthetic fiber processing, food processing, etc.
