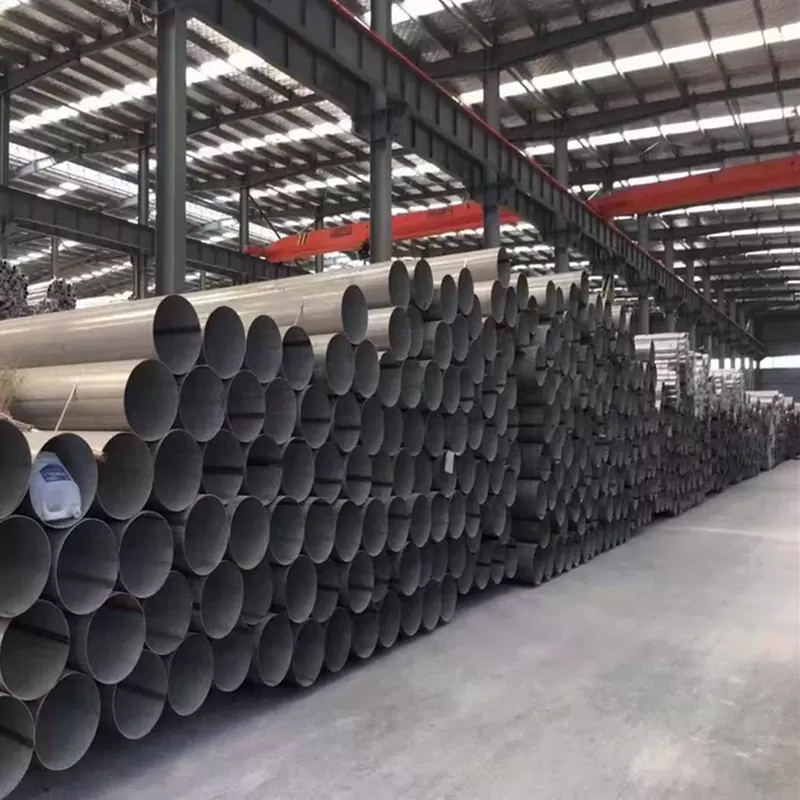

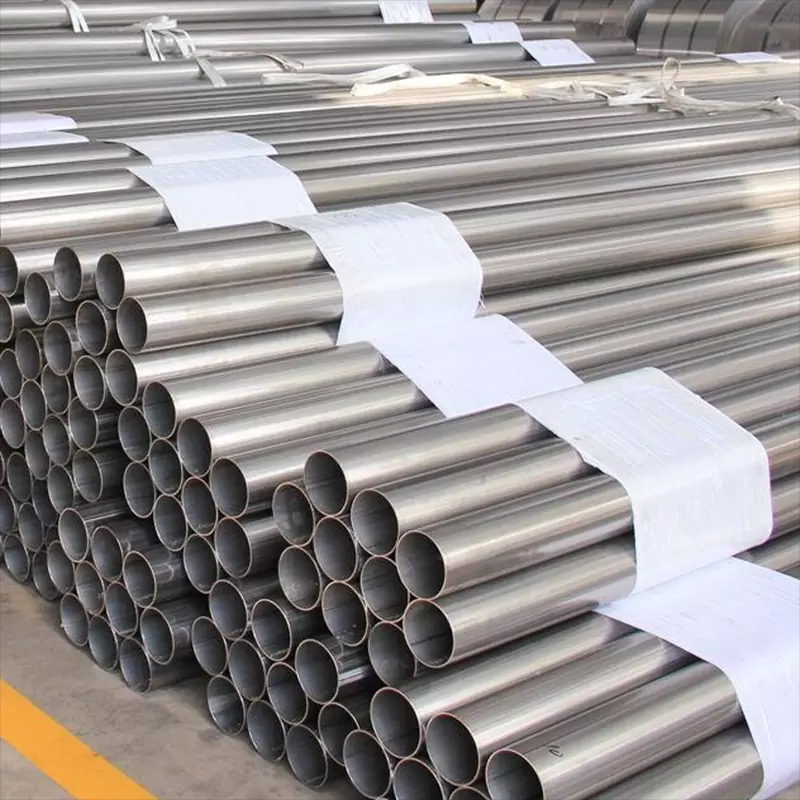

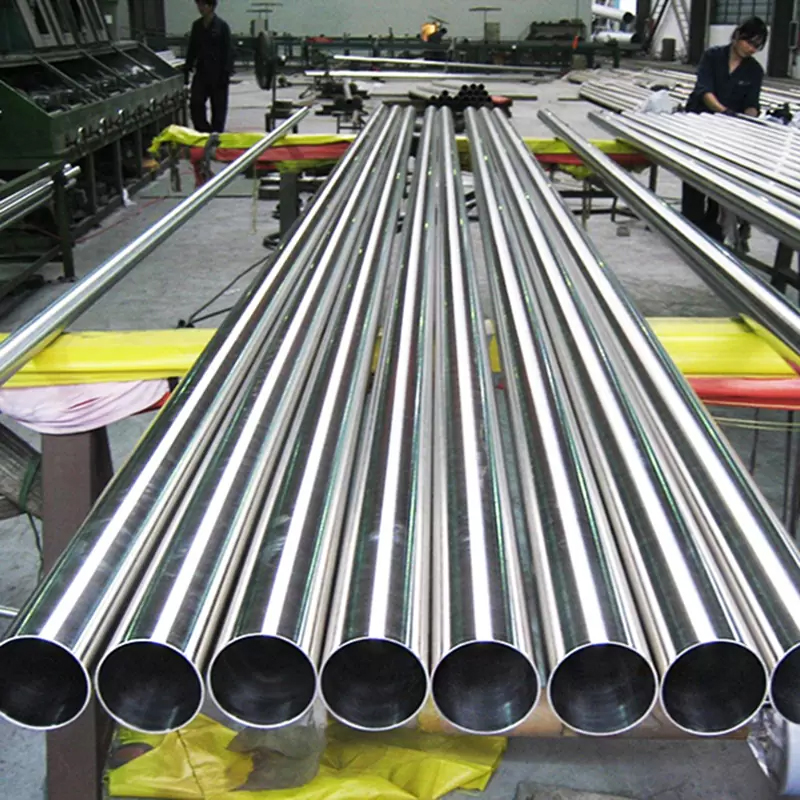

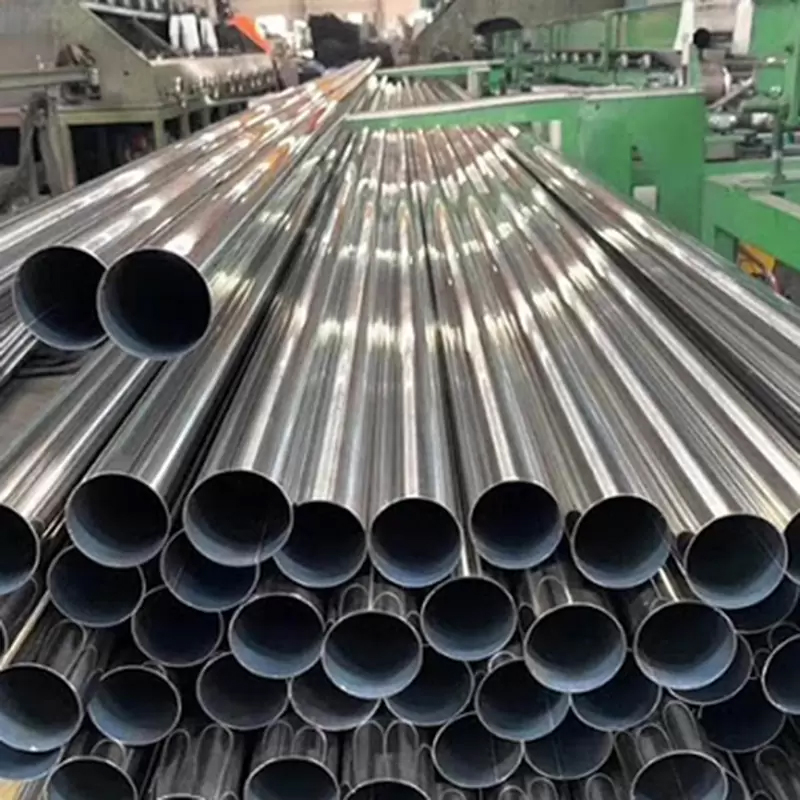

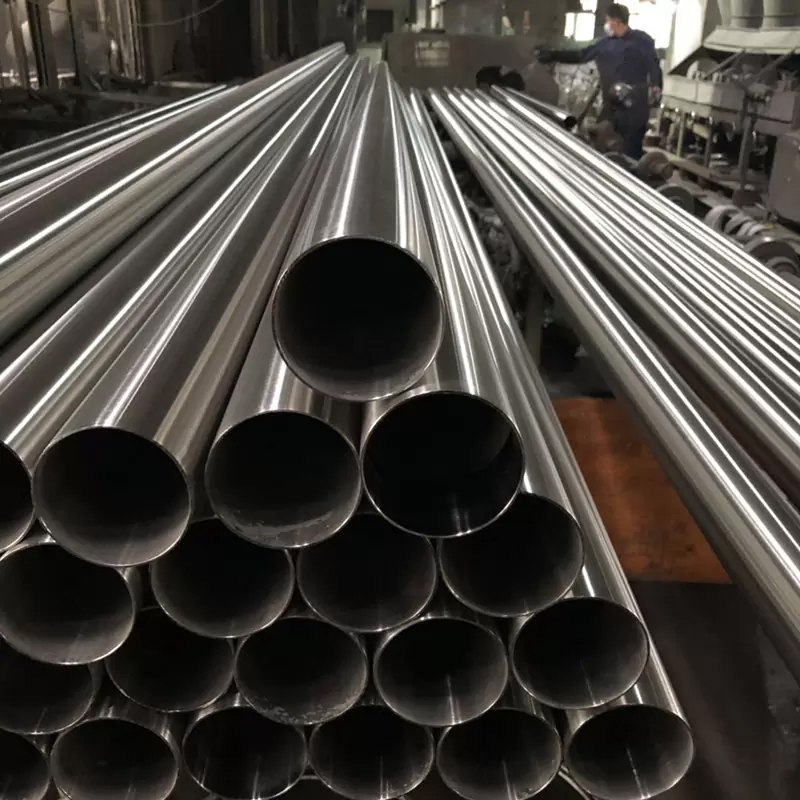

Nickel Alloy 200 Pipe

Nickel Alloy 200 Pipe
Nickel Alloy 200 pipe is made of a pure nickel alloy containing a minimum of 99% nickel. This alloy is the purest nickel alloy and is often chosen for use inly corrosive environments.
GET A QUOTE
TEL: +86 17616193602
WhatsApp: +86 17616193602
E-mail: enquiry@shougang-metal.com

PRODUCT DESCRIPTION

Nickel Alloy 200 Pipe Description

Nickel 200 is a high-purity metal consisting primarily of nickel with a purity of 99.0%. Due to its excellent physical and chemical properties, it is widely used in various fields. Nickel alloy 200 pipe has high corrosion resistance, can withstand corrosion from various acid and alkali liquids, and maintains stable performance at high temperatures. In addition, nickel 200 pipe has good thermal and electrical conductivity and is an important electrical and thermal conductive material. This metal can be processed and heated through various processes to make products of different shapes and specifications. Lastly, Nickel 200 is a pure commercial nickel with extremely low carbon content that has been approved for use in high temperature environments up to 1230°C.


Product Parameters

Product Name

Nickel Alloy 200 Pipe

Outer Diameter

Round Pipe

4mm-200mm

Square Pipe

10*10mm-100*100mm

Rectangular Pipe

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling


Chemical Composition

Gread

C

Si

S

Mn

Fe

Ni

Cu

Alloy 200

0.15 max

0.35 max

0.01 max

0.35 max

0.4 max

99.0 min

0.25 max


Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

55

15

35


Physical Performance


Units

Temperature in°C

Density

8.89 g/cm³

Room

Specific Heat

0.108 Kcal/kg.C

Room

Melting Range

1435-1446°C

-

Modulus of Elasticity

205 KN/mm²

Room

Electrical Resistivity

9.6 µΩ.cm

20°

Coefficient of Expansion

13.3 µm/m °C

20 - 100°

Thermal Conductivity

70.3 w/m-° K

20°


Scope of Application

Used in electrical industry, chemical industry, heat exchanger, synthetic fiber processing, food processing, etc.

Product details



合金管拼图1

Product packaging

不锈钢管包装拼图
