1045 Cold Rolled Steel Coil

1045 Cold Rolled Steel Coil
1045 cold rolled steel coil is a medium carbon structural steel with good hot and cold workability and good mechanical properties. It is widely used in the industrial machinery manufacturing industry.
GET A QUOTE
TEL: +86 17616193602
WhatsApp: +86 17616193602
E-mail: enquiry@shougang-metal.com

PRODUCT DESCRIPTION

1045 Cold Rolled Steel Coil

AISI 1045 is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished coils that can be machined unsymmetrically with limited distortion. They are often used in the production of gears, shafts, axles, bolts, studs and machine parts.


Product Parameters

Product Name

1045 Cold Rolled Steel Coil

Production Process

Hot Rolling, Cold Rolling

Material Standards

AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

Width

100mm-3000mm

Length

1m-12m, or Customized Size

Thickness

0.1mm-400mm

Delivery Conditions

Rolling, Annealing, Quenching, Tempered or Standard

Surface Process

Ordinary, Wire Drawing, Laminated Film


Chemical Composition

ElementContent (%)
Carbon, C0.43-0.50
Manganese, Mn0.60-0.90
Sulfur, S0.05 (max)
Phosphorous, P0.04 (max)
Iron, FeBalance


Mechanical Properties

PropertiesMetricImperial
Tensile strength585 MPa84800 psi
Yield strength450 MPa65300 psi
Modulus of elasticity200 GPa29000 ksi
Shear modulus (typical for steel)80 GPa11600 ksi
Poisson’s ratio0.290.29
Elongation at break (in 50 mm)12 %12 %
Hardness, Brinell163163
Hardness, Knoop (converted from Brinell hardness)184184
Hardness, Rockwell B (converted from Brinell hardness)8484
Hardness, Vickers (converted from Brinell hardness)170170


Scope of Application

The following are the application areas of AISI 1045 carbon steel:

● Bolts
● Studs
● Gears
● Axles
● Shafts
● Machine parts.

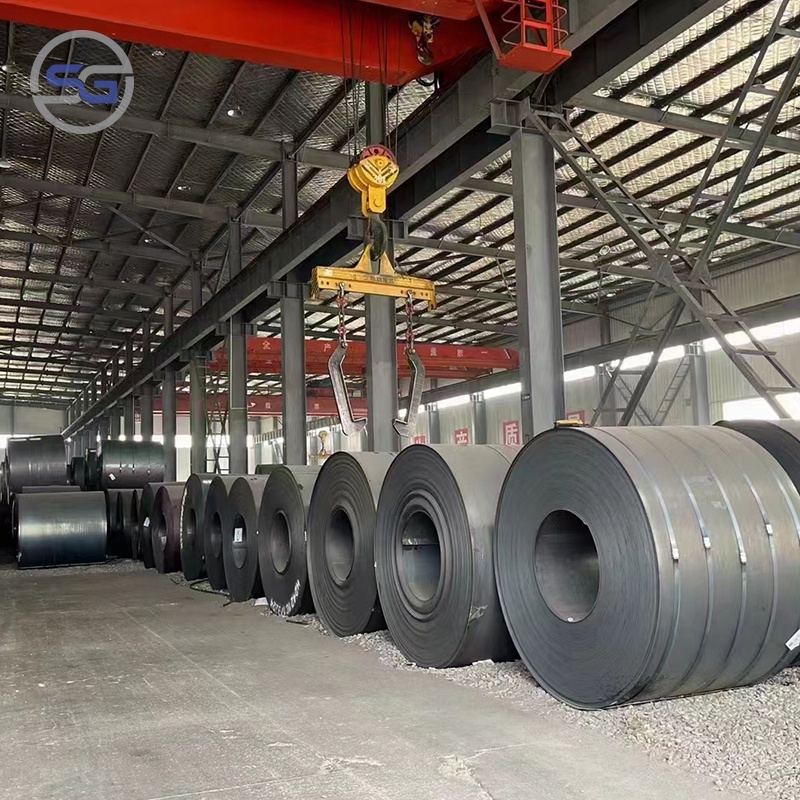

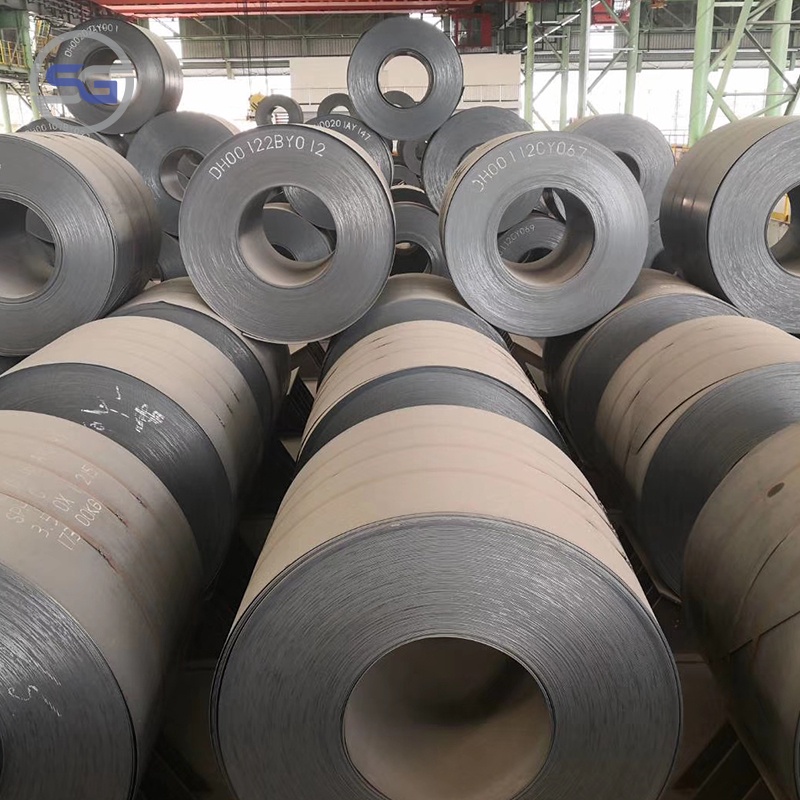

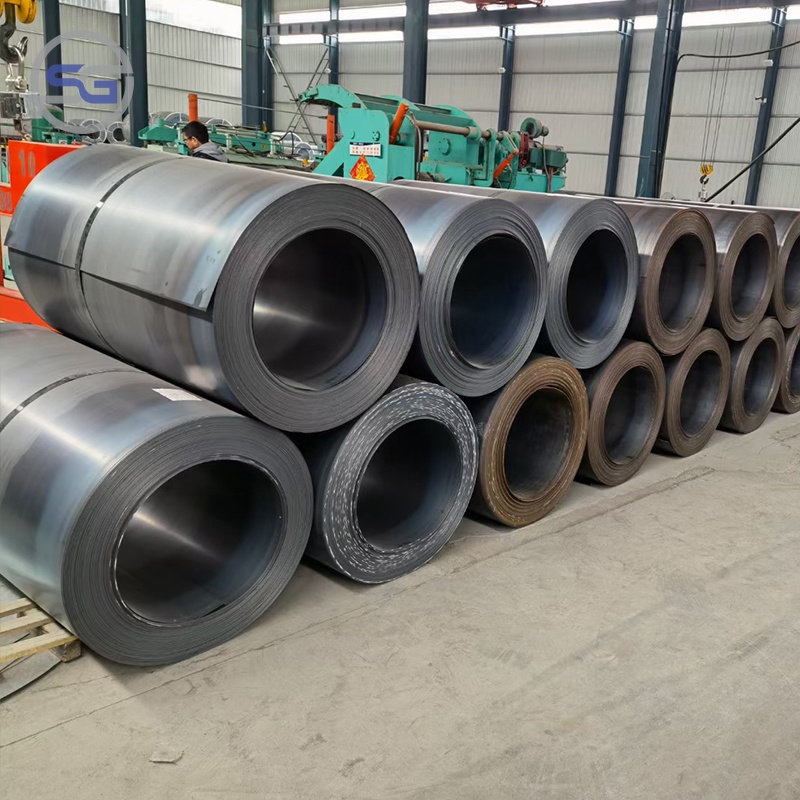

Product details


碳钢卷1


Product packaging


碳钢卷包装拼图
