Hastelloy C-276 Pipe

Hastelloy C-276 Pipe
Hastelloy C276 pipe is made of a high-performance metal material with excellent corrosion resistance and mechanical properties. It is widely used in metal materials under high temperature, high pressure, and corrosive environments, such as petrochemical, chemical fertilizer, nuclear industry and other fields.
GET A QUOTE
TEL: +86 17616193602
WhatsApp: +86 17616193602
E-mail: enquiry@shougang-metal.com

PRODUCT DESCRIPTION

Hastelloy C-276 Pipe Description

Hastelloy C276 is a nickel-based alloy that has excellent corrosion resistance and high temperature strength. Due to the unique composition and specially processed processing technology, Hastelloy C276 pipe can maintain stable performance in various harsh environments. Its high corrosion resistance makes it widely used in the marine, chemical and petroleum industries. In high-temperature environments, the strength and ductility of Hastelloy C276 can maintain a high level, which allows it to maintain stable performance in high-temperature environments. In addition, the welding performance of Hastelloy C276 pipe is also very good and it can be connected through various welding processes. Because of the particularity of its composition and processing technology, the processing of Hastelloy C276 pipe requires special equipment and technology.


Product Parameters

Product Name

Hastelloy C-276 Pipe

Outer Diameter

Round Pipe

4mm-200mm

Square Pipe

10*10mm-100*100mm

Rectangular Pipe

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling


Chemical Composition

C

P

Si

S

V

Cr

Mn

Fe

Co

Ni

Mo

W

0.01 max

0.08 max

0.04 max

0.03 max

0.35 max

14.5 - 16.5

1.0 max

4.0 - 7.0

2.5 max

Remainder

15.0 - 17.0

3.0 - 4.5


Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

100

41

40


Physical Performance


Units

Temperature in°C

Density

8.69 g/cm³

22°

Specific Heat

0.102 Kcal/kg.C

Room

Melting Range

1323-1371°C

-

Modulus of Elasticity

205 KN/mm²

Room

Electrical Resistivity

129.5 µΩ.cm

24°

Coefficient of Expansion

11.2 µm/m °C

24-93°

Thermal Conductivity

10.2 w/m-° K

38°


Scope of Application

C- 276 alloys are mostly used as part of the most severe situations, for example, chemical processing, pollution control, pulp and paper production; industrial and municipal waste treatment and acid natural gas recovery.

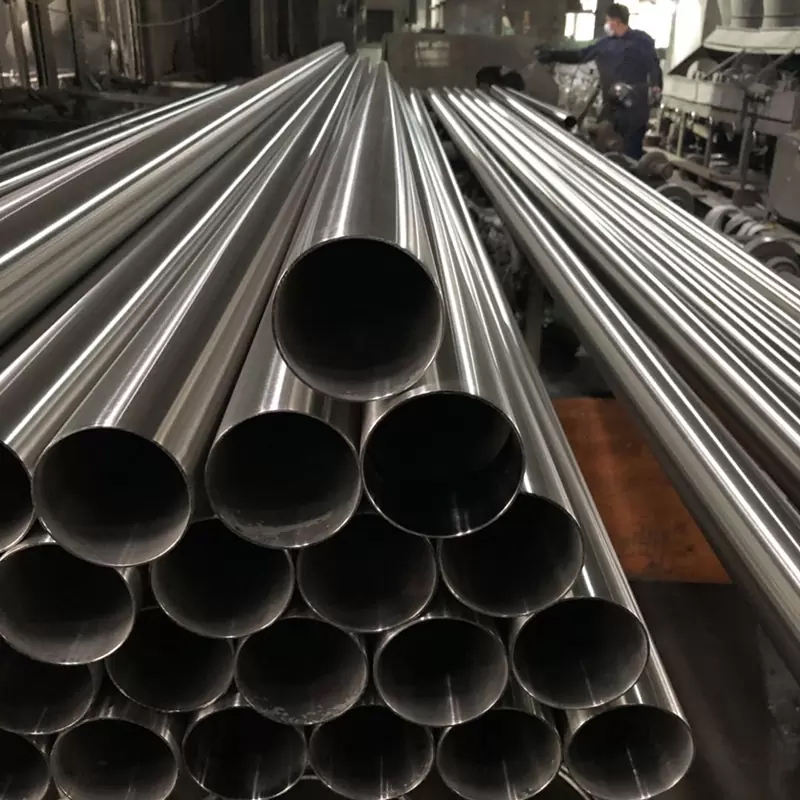

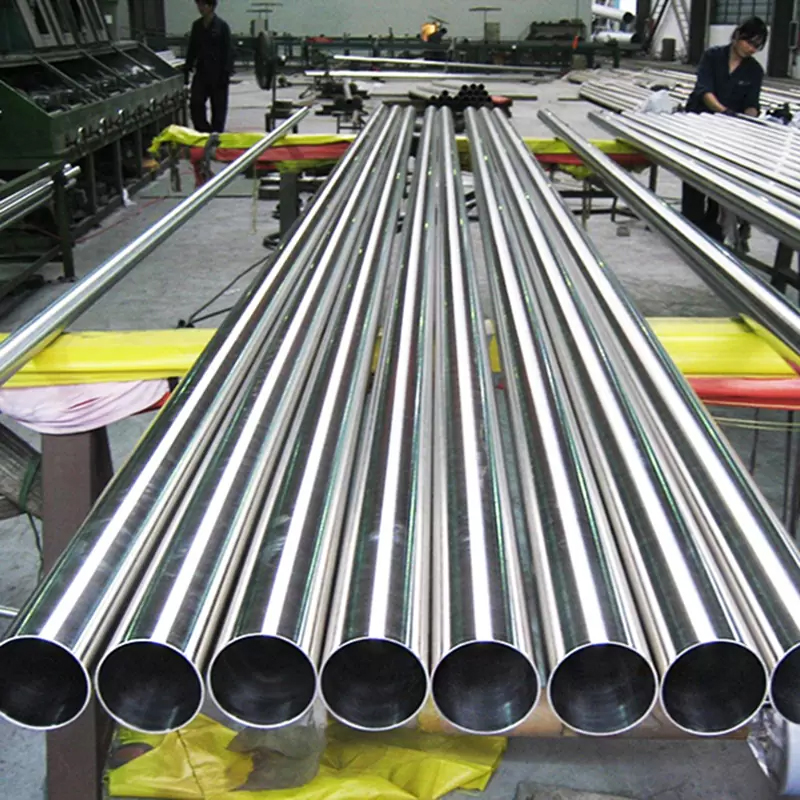

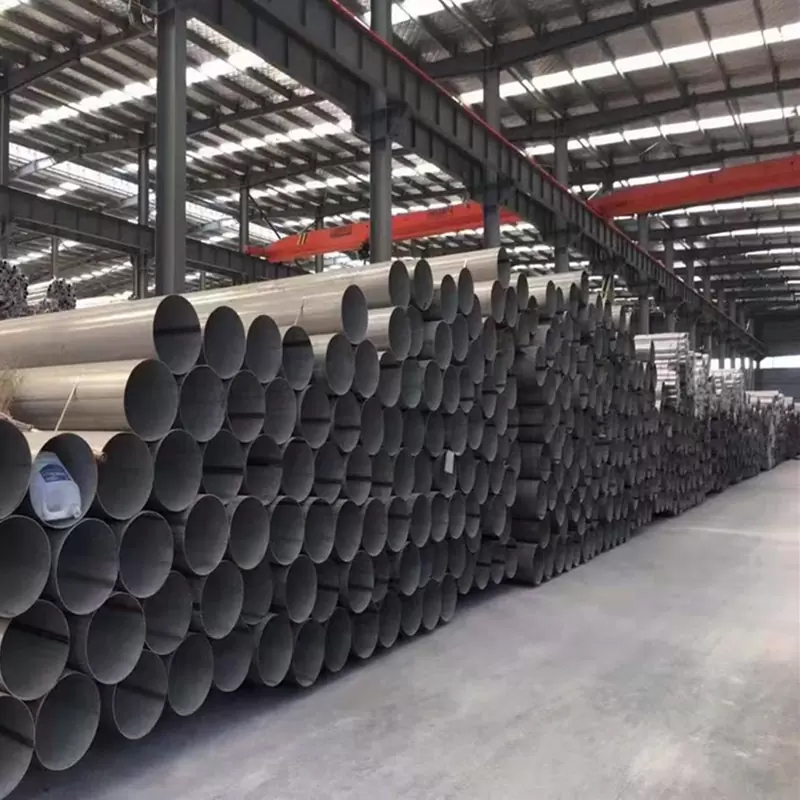

Product details


合金管拼图1

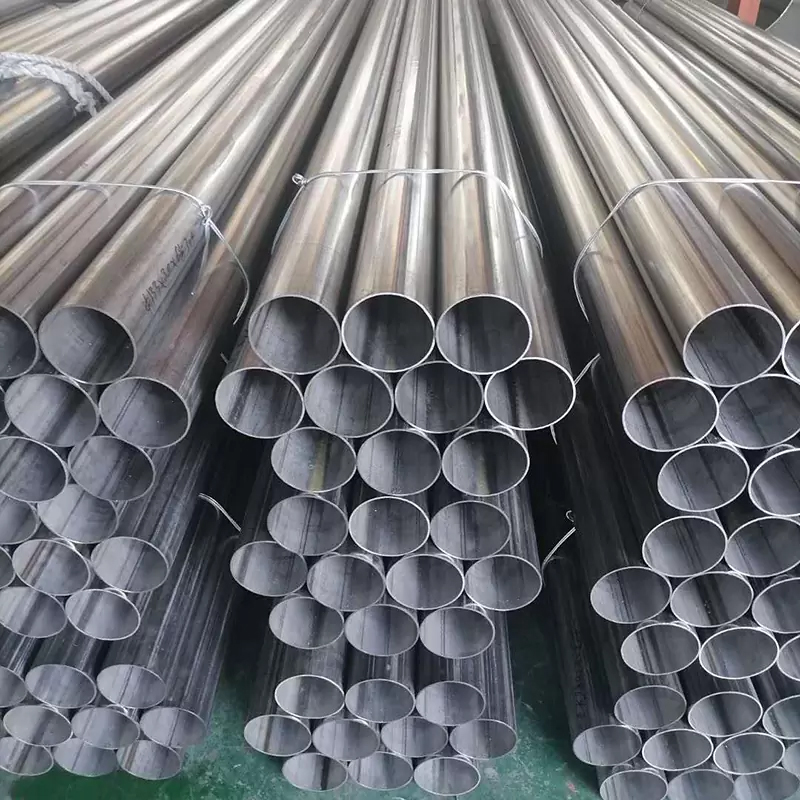

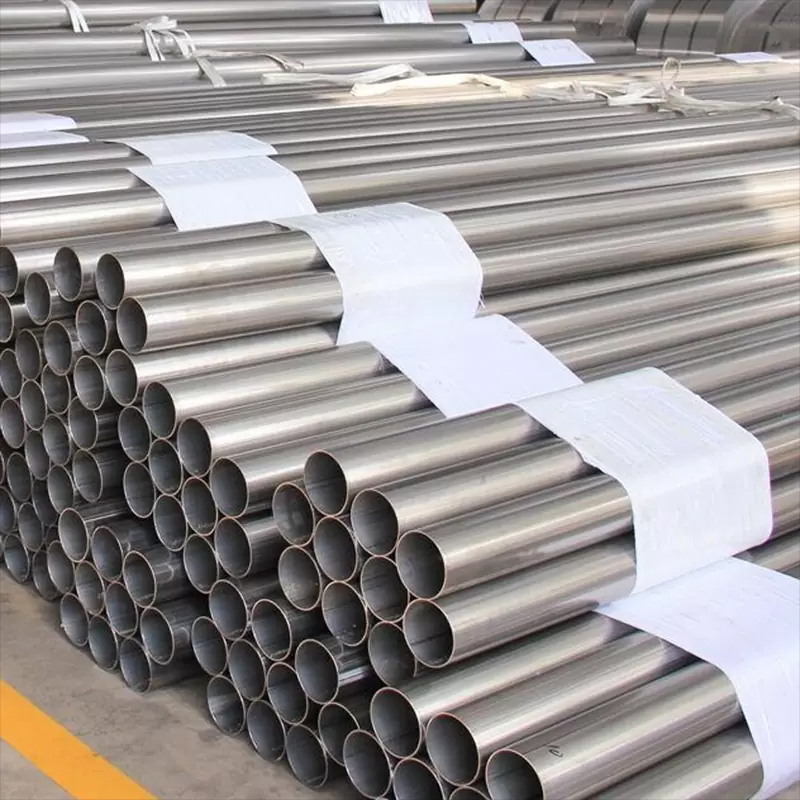

Product packaging

不锈钢管包装拼图
